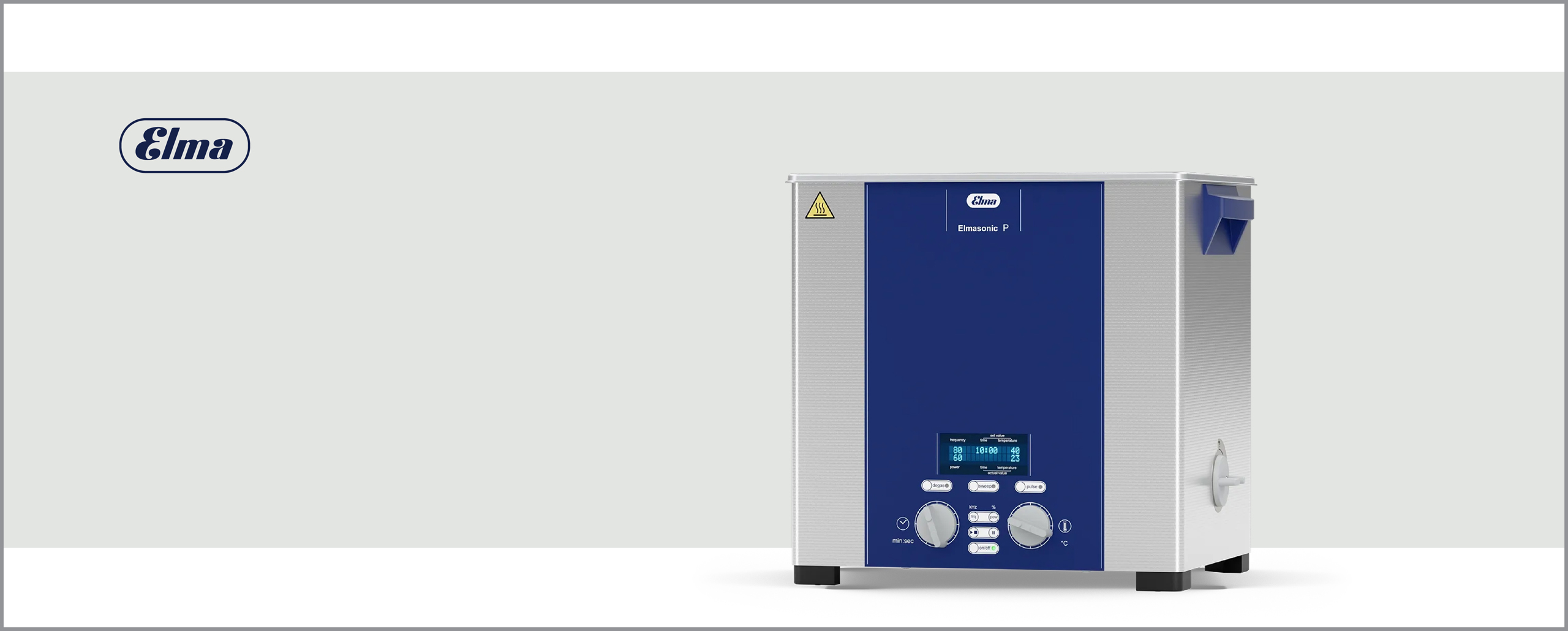

Elmasonic P

The Elmasonic P is a high-end, multifunctional ultrasonic cleaning system designed for advanced laboratory, medical, and industrial applications.



It is characterized by maximum precision, flexible parameter control, and powerful ultrasonic performance, making it suitable for:

• Analytical laboratories

• Medical and pharmaceutical environments

• Precision engineering

• Industrial cleaning processes



The system integrates multi-frequency technology, programmable functions, and adjustable ultrasonic power, enabling highly controlled and reproducible cleaning and processing results.



Key Features

1. Multi-Frequency Ultrasonic Technology

• Dual frequency operation:
– 37 kHz → powerful, intensive cleaning
– 80 kHz → gentle cleaning for delicate components

• Optional automatic alternation between frequencies

This allows the same unit to handle both robust industrial cleaning and sensitive laboratory applications.



2. Adjustable Ultrasonic Power

• Power can be adjusted in 10% increments

• Range typically from 30% to 100% output



Enables precise adaptation to:

• Material sensitivity

• Contamination level

• Process requirements



3. Multiple Ultrasonic Operating Modes

The Elmasonic P offers application-optimized modes:

• Sweep Mode
– Continuous frequency variation
– Ensures uniform sound field distribution

• Pulse Mode
– Short bursts of increased power
– Effective against stubborn contaminants

• Degas Mode
– Removes dissolved gases from liquids
– Improves cavitation efficiency

• Normal / Standard Mode
– Stable frequency for mixing, dissolving, and dispersing

These modes allow fine control of the ultrasonic process depending on the task.



4. Programmable & Intelligent Operation

• Digital control system with microprocessor

• Programmable cleaning cycles

• Automatic process start when set temperature is reached (Autostart function)

• Timer:
– Up to 60 minutes or continuous mode

• Automatic shut-off:
– After extended operation (up to 8–12 hours, depending on mode)



5. Integrated Heating System

• Temperature range: 30 °C – 80 °C

• Thermostatically controlled

• Automatic safety shutdown at ~90 °C



Improves removal of:

• Oils and grease

• Organic residues

• Difficult contaminants



6. Advanced User Interface

• Large digital display showing:
– Frequency
– Power level
– Set and actual temperature
– Time

• Intuitive controls for parameter adjustment

• Memory/program functionality



7. Robust Industrial Construction

• Cavitation-resistant stainless steel tank

• Stainless steel housing (hygienic and durable)

• High-performance transducer system (sandwich design)

• Ergonomic handles for easy handling



8. Safety Features

• Dry-run protection

• Automatic shut-off after inactivity

• Temperature safety cut-off

• Protection class: IP20

• Designed for continuous professional use



Technical Specifications

Ultrasonic System

• Frequencies: 37 kHz / 80 kHz (dual frequency)

• Technology: cavitation-based ultrasonic cleaning

• Power control: adjustable (30–100%)



Electrical Data

• Mains voltage: 220–240 V (±10%)

• Frequency: 50 / 60 Hz

• Total power consumption: varies by model (approx. 370 W to >1000 W)



Heating System

• Heating power: approx. 250 W – 1250 W (depending on model)

• Temperature range: 30–80 °C

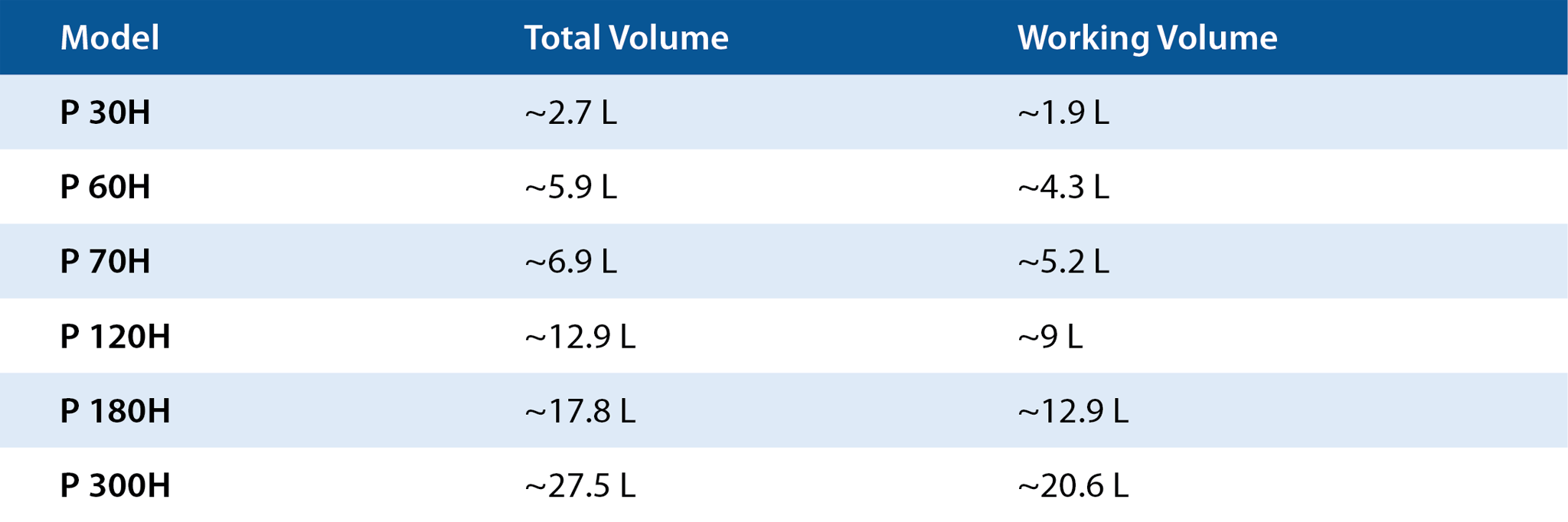

Tank Capacity (Series Range)



Mechanical Characteristics

• Stainless steel tank

• Drain valve (in most models)

• External dimensions vary by model

• Weight range: approx. 3.3 kg – 11 kg



Additional Technical Details

• Ultrasonic peak power significantly higher in Pulse mode

• Continuous operation possible with automatic safety shut-off

• Optional accessories:
– Baskets
– Lids
– Beakers
– Special holders



Applications

Laboratory

• Sample preparation

• Degassing solvents

• Mixing, dissolving, dispersing



Medical / Pharmaceutical

• Instrument cleaning

• Precision cleaning of sensitive components



Industrial

• Intensive cleaning of mechanical parts

• Removal of oils, greases, and residues



Precision Fields

• Optics

• Electronics

• Jewelry



Advantages

• Dual-frequency flexibility (powerful + gentle cleaning)

• Precise control of ultrasonic power

• Multiple operating modes for specialized tasks

• High reproducibility of results

• Robust, industrial-grade construction

• Suitable for both cleaning and laboratory processes



The Elmasonic P series is a premium ultrasonic cleaning system designed for applications requiring maximum control, flexibility, and performance.



Its combination of:

• Dual frequency technology

• Adjustable power output

• Programmable operation makes it a highly versatile and precise solution for professional environments where cleaning quality and process control are critical.
